EDGE VS420 SHREDDER
PRECISION SCREENING FOR THROUGHPUT EFFICIENCY
Designed for demanding secondary and tertiary screening in quarry, mining, recycling, and heavy construction environments. It features a high-performance screening system, variable speed drive, hydraulic adjustments, and smart onboard monitoring. A 7-year data plan is included with the Edge telematics system.
A large hopper/feeder (with optional metal detection or purge chute) protects the screening media, while a robust under-structure and optimized stacking conveyors simplify transport and setup. The compact transport dimensions make it easier to move between sites and deploy quickly.
WEIGHT (TONNE)
29.2T (32.1UST)
TRANSPORT WIDTH
2.55M (8’4”)
TRANSPORT LENGTH
9.7M (31’10”)
TRANSPORT HEIGHT
WORKING WIDTH
WORKING LENGTH
WORKING HEIGHT
3.1M (10’4”)
2.55M (8’4”)
13.4M (44’)
4.7M (15’6”)
VS420
COMPONENT OVERVIEW
.png)
.png)
• Engine / Power: Caterpillar C9.3B, 310 kW (420 hp), Tier 4 Final / Stage V
• Nominal Torque (Pair): ~240,000 Nm
• Rotor / Shaft Length: 2.0 m (approx.) twin synchronized shafts
• Operating / Transport Weight: ~29,200 kg (~64,375 lb)
• Fuel Consumption: ~25 – 30 L/hr (7–8 US gallons/hr)
• Discharge Conveyor: 1,400 mm (55”) wide; discharge height ~4.7 m (15’6″)
%20(4).png)

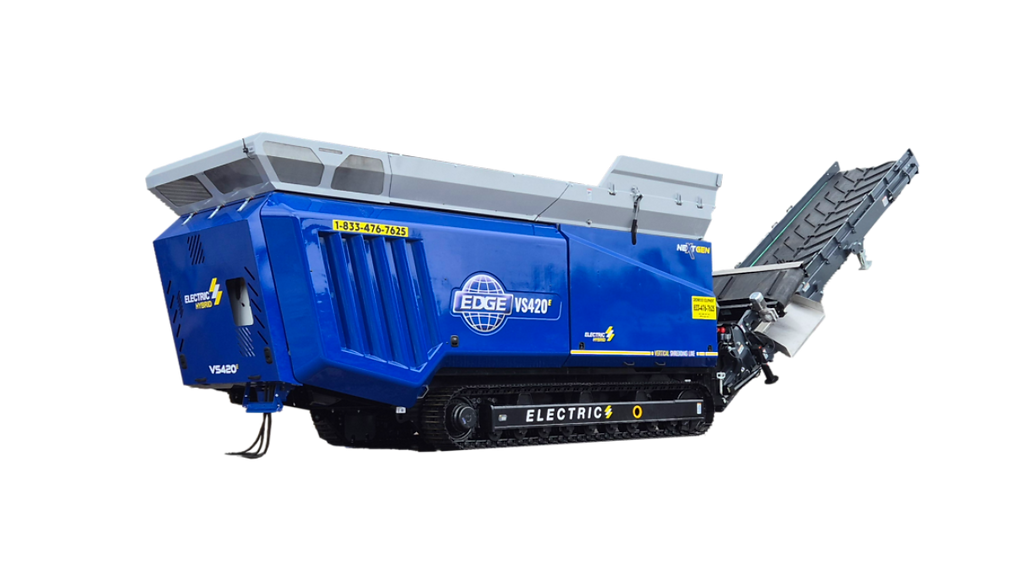

GO ELECTRIC WITH EDGE
.png)
.png)
IMPROVED PRODUCTIVITY
More power, torque, and faster shaft speed deliver high production capacity.
.png)

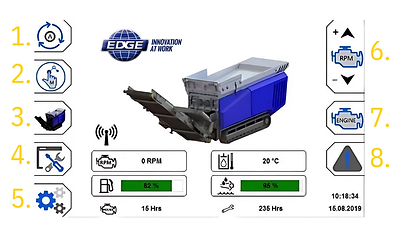

ADVANCED CONTROLS
New control system maximizes torque for longer, tougher applications.
.png)
ENHANCED ACCESSIBILITY
Larger chassis, fold-down sides, and cartridge shaft system make the unit highly accessible.
.png)
HIGH TORQUE & SPEED
Torque boosted from 90k Nm to 120k Nm; speed range expanded to 7–38 RPM.
.png)
EASY MAINTENANCE
Fuel, AdBlue, filters, and gauges are all accessible from one point.
.png)
INTELLEGENT PROTECTION
Smart system monitors shaft pressure and blocks non-shreddables to prevent damage.

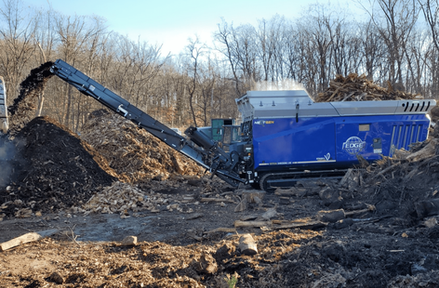

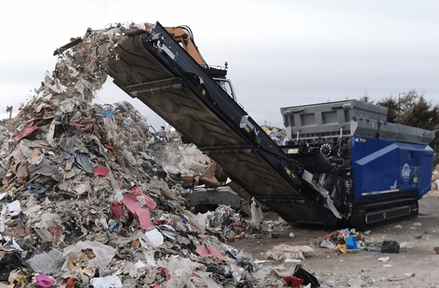

SHREDDER APPLICATIONS
C&D WASTE
GREEN WASTE
MSW WASTE
TIRES
MATRESS
WHAT SETS THE VS420 APART
High-torquqe twin shaft shredder.
.png)
X2 SHAFT 120,000NM
Synchronised shafts deliver 120,000 Nm per shaft (up to 240 kNm down one shaft) for heavy, mixed feeds.
SELF-PROTECTION
Auto detects non-shreddables, runs reverse cycles, then enters limp mode to prevent damage and downtime.
HYDRAULIC TIP HOPPER
4.4–6.4m³ cap. with hydraulic extensions & auto tipping—radio remote controlled for 1-man loading.
HYBRID FLEXIBILITY
Option to run full electric or diesel/hydraulic allows deployment in regulated or indoor settings.
.png)
QUARRY FOREMAN, BC
Brent T.
“It chews through our hardest rock—quietly and efficiently. And setup is the fastest I’ve seen.”
A CLOSE COMPARISON OF THE EDGE V2420
.png)
