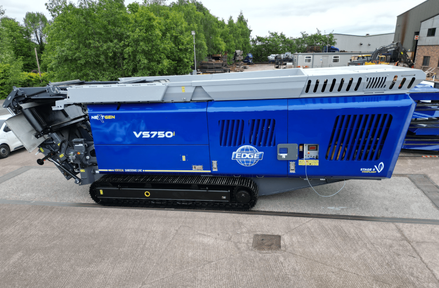

EDGE VS750i SHREDDER
ULTIMATE HIGH-CAPACITY TWIN SHAFT SHREDDER
A high-capacity twin-shaft primary shredder designed for the toughest waste. Powered by a 755hp CAT engine, it delivers unmatched throughput & torque while maintaining fuel efficiency. The VS750i’s asynchronous shafts, intelligent control system, & advanced self-protection tech ensure smooth operation—even with bulky & contaminated materials.
Built for adaptability, it’s available in tracked, static, or electric configurations, making it a versatile choice for waste, recycling, biomass, and demolition applications. With hydraulic hopper extensions, fast setup, and modular servicing points, the VS750i is built to keep productivity high and downtime low.
WEIGHT (TONNE)
46.3T (51.8UST)
TRANSPORT WIDTH
2900MM
TRANSPORT LENGTH
11385MM (37’4”)
TRANSPORT HEIGHT
WORKING WIDTH
WORKING LENGTH
WORKING HEIGHT
3500MM (11’6”)
2900MM (9’6”)
15167MM (49’9”)
4691MM (15’4”)

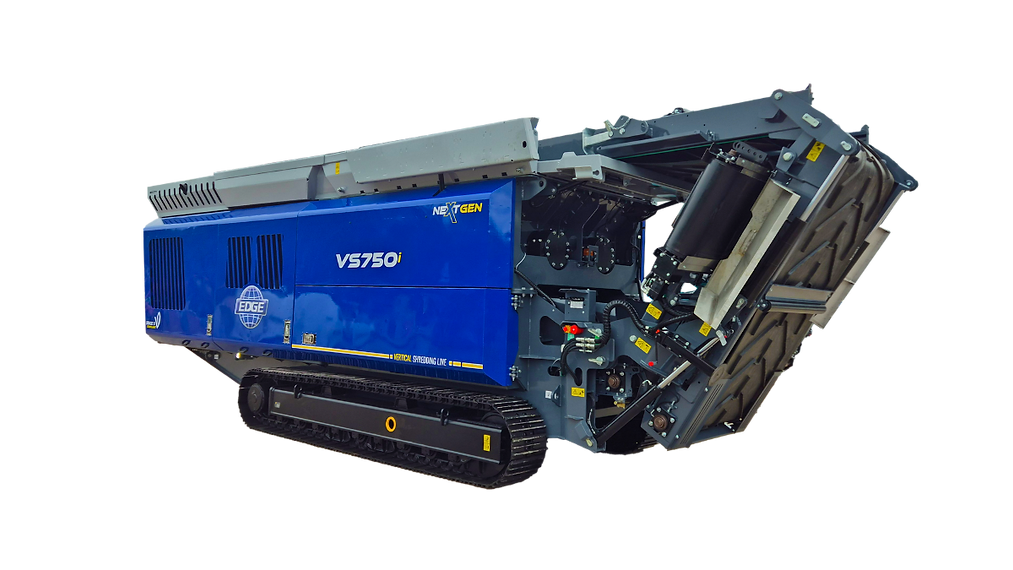

VS750i
COMPONENT OVERVIEW
.png)
.png)
• ENGINE POWER: CAT 755 hp / 563 kW (Caterpillar C18)

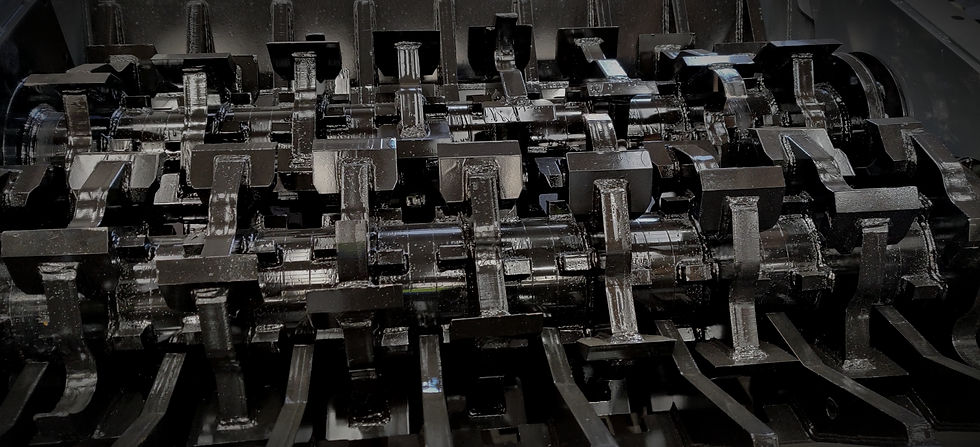

• SHAFT LENGTH: 8’2” / 2.5 m dual asynchronous rotors
• THROUGHPUT: Up to 150 t/hr (material dependent)
• OPERATING WEIGHT: 102,000 lb / 46.3 t
• CONTROL SYSTEM: Load sensing with automated reverse cycles
• POWER OPTIONS: Diesel or full electric (VS750iE)
%20(4).png)
GO ELECTRIC WITH EDGE
.png)
.png)
IMPROVED PRODUCTIVITY
More power, torque, and faster shaft speed deliver high production capacity.
.png)
ADVANCED CONTROLS
New control system maximizes torque for longer, tougher applications.
.png)
ENHANCED ACCESSIBILITY
Larger chassis, fold-down sides, and cartridge shaft system make the unit highly accessible.
.png)
HIGH TORQUE & SPEED
Torque boosted from 90k Nm to 120k Nm; speed range expanded to 7–38 RPM.
.png)
EASY MAINTENANCE
Fuel, AdBlue, filters, and gauges are all accessible from one point.
.png)
INTELLEGENT PROTECTION
Smart system monitors shaft pressure and blocks non-shreddables to prevent damage.
SHREDDER APPLICATIONS
C&D WASTE
GREEN WASTE
MSW WASTE
TIRES
MATRESS
WHAT SETS THE VS750i APART
High capacity primary shredder.
.png)
X2 SHAFT 563kW
Twin asynchronous shafts powered by a 755hp CAT engine deliver relentless torque & throughput.
SMART LOAD CONTROL
Smart sensors monitor power draw & auto adjust speed for a balanced shred & fuel efficiency.
OPEN-CUT TABLE DESIGN
Maximizes intake volume for oversized or irregular feed materials—perfect for bulky waste & demolition debris.
1-POINT SERVICE ACCESS
Centralized maintenance area simplifies inspection, service, and cutter changes for faster turnaround.
.png)
QUARRY FOREMAN, BC
Brent T.
“It chews through our hardest rock—quietly and efficiently. And setup is the fastest I’ve seen.”
A CLOSE COMPARISON OF THE EDGE VS750i
.png)
