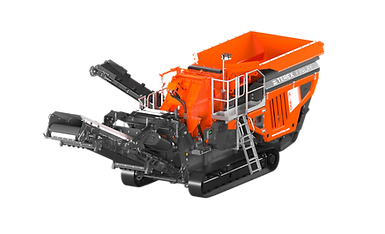

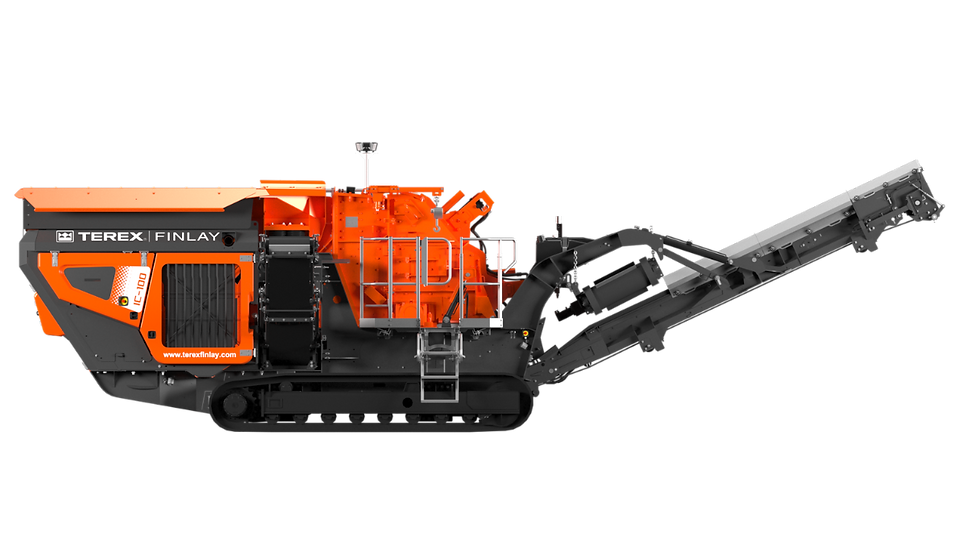

FINLAY IC-100 COMPACT IMPACT CRUSHER
IC-100: Compact impact—high reduction, quick setup
The Finlay® IC-100 tracked compact impact crusher is built for quarry, C&D, reinforced concrete & asphalt recycling. It centres on a Ø860×830mm (34"×33") direct-drive impact chamber with variable rotor speed, hydraulic-assisted apron setting, & overload protection for safe, fast recovery.
A heavy-duty VGF with integral pre-screen and a 2.6 m³ hopper sustain consistent feed, with selectable discharge to the by-pass or main conveyor. Transport-friendly and quick to set up, the IC-100 adds a 900 mm main conveyor, hydraulic service lowers, and T-Link telematics.
WARRANTY, SERVICING
& FINANCING AVAILABLE
EXCLUSIVELY SOLD
IN BC BY PROTRACK
-
NET ENGINE POWER
-
INLET OPENING
-
OPERATING WEIGHT
-
TRANSPORT DIMENSIONS
-
WORKING DIMENSIONS
Tier 3 / Stage IIIA John Deere 6068 260hp / John Deere 6068 194kW Tier 4F / Stage IV Volvo 275hp / Volvo 205kW Stage V Volvo 275hp / Volvo 205kW
Ø 34” x33” / Ø860mm x 830mm
52,250lbs / 23,600kg
Height 10' 5" | Width 8' 4" | Length 32' 11" / Height 3.16m | Width 2.55m | Length 10m
Height 12' 2" | Width 17' 1" | Length 41' 5" / Height 3.7m | Width 5.2m | Length 12.62m
%20(1).jpg)
CRUSHER APPLICATIONS
STONE &
HARD ROCK
Granite, basalt & ore
.png)
.png)
CONCRETE
& ASPHALT
C&D / recycle waste
.png)
REBAR
& RUBBLE
Demolition debris
.png)
SAND &
AGGREGATES
Spec-grade sizing
.png)
MIXED SITE MATERIAL
On-site cleanup
.png)
LOWER YOUR OPERATING COSTS
Our Finlay equipment isn't just powerful—it's profitable. Here's how it reduces your bottom line:
WHAT SETS THE IC-100 APART
Compact, powerful & engineered for max versatility applications.
_edited.png){kind=small}
DIRECT DRIVE
Ø860mm variable speed chamber & hydraulic aprons for quick/precise control.
HD VGF + PRE-SCREEN
2.6m³ hopper to maintain steady, choke-fed production.
HIGH THROUGHPUT
900mm main conveyor, 3.0m discharge; 500mm by-pass (opt.) w/ hydraulic fold.
_edited.png)
T-LINK TELEMATICS
(7-year data included) + options like pre-screen, by-pass conveyor, overband magnet.
.png)
QUARRY FOREMAN, BC
Brent T.
“It chews through our hardest rock—quietly and efficiently. And setup is the fastest I’ve seen.”
A CLOSER COMPARISON
.png)
