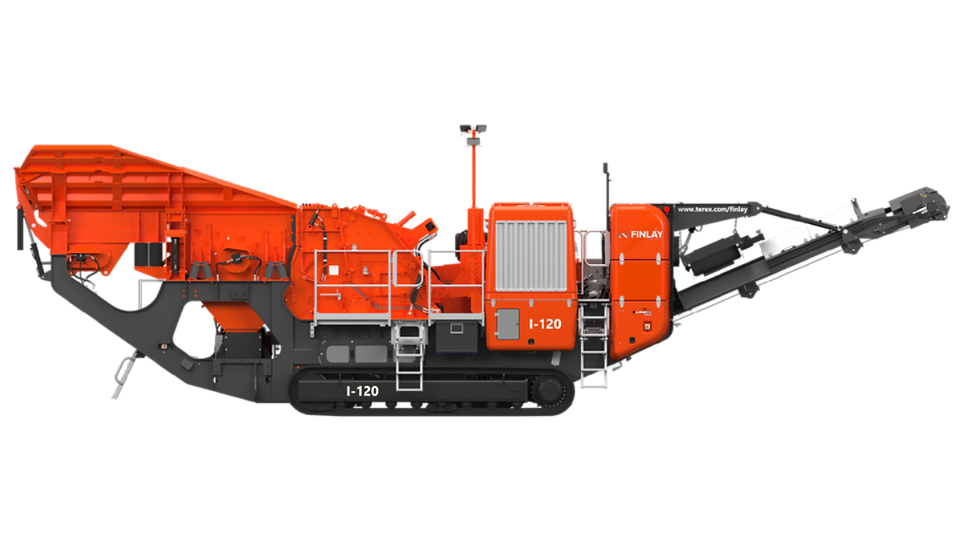

FINLAY I-120 IMPACT CRUSHER
Mid-size impact—high reduction, great shape
The Finlay® I-120 tracked impact crusher is built for demanding secondary tertiary duty in quarrying, mining, recycling, and demolition. At its core is the proven Terex® CR038 impact chamber with direct drive and advanced electronic control, delivering high reduction ratios and consistent cubical product.
A heavy-duty VGF with integral pre-screen improves material flow, while the 1.1 m main conveyor (3.5 m discharge) and optional 650 mm by-pass streamline stockpiling. Transport-friendly and quick to set up, the I-120 includes T-Link telematics with a 7-year data plan.
WARRANTY, SERVICING
& FINANCING AVAILABLE
EXCLUSIVELY SOLD
IN BC BY PROTRACK
-
NET ENGINE POWER
-
INLET OPENING
-
OPERATING WEIGHT
-
TRANSPORT DIMENSIONS
-
WORKING DIMENSIONS
Tier 3 - CAT 375hp | Tier 4F / Stage IV - Scania 400hp / Tier 3 - CAT 280kW | Tier 4F / Stage IV - Scania 292kW
Ø41” x 44” / Ø1033mm x 1100mm
81,571lbs / 37,000kg
Height 11' 2'' | Width 8' 6'' | Length 49' 10'' / Height 3.4m | Width 2.6m | Length 15.2m
Height 13' 0'' | Width 18' 9'' | Length 48' 10'' / Height 4.0m | Width 5.8m | Length 14.9m
%20(1).jpg)
CRUSHER APPLICATIONS
STONE &
HARD ROCK
Granite, basalt & ore
.png)
.png)
CONCRETE
& ASPHALT
C&D / recycle waste
.png)
REBAR
& RUBBLE
Demolition debris
.png)
SAND &
AGGREGATES
Spec-grade sizing
.png)
MIXED SITE MATERIAL
On-site cleanup
.png)
LOWER YOUR OPERATING COSTS
Our Finlay equipment isn't just powerful—it's profitable. Here's how it reduces your bottom line:
WHAT SETS THE I-120 APART
Compact, powerful & engineered for max versatility in real-world applications.
_edited.png){kind=small}
CR038 CHAMBER
Direct drive — high reduction, electronically controlled.
HYDRAULIC ASSISTED APRON
Setting for quick, tool-free adjustment and safe recovery.
HD VGF + PRESCREEN
Removes fines and improves choke feed and throughput.
_edited.png)
T-LINK TELEMATICS
(7-year data included) + options like pre-screen, by-pass conveyor, overband magnet.
.png)
QUARRY FOREMAN, BC
Brent T.
“It chews through our hardest rock—quietly and efficiently. And setup is the fastest I’ve seen.”
