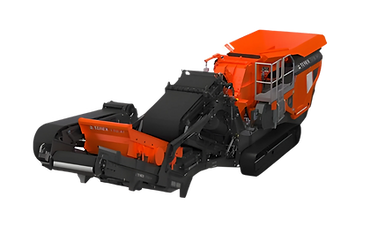

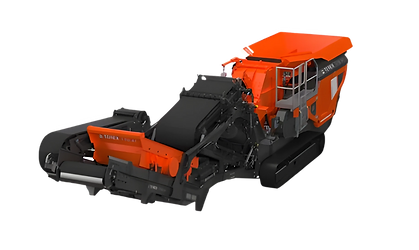

FINLAY I-140RS IMPACT CRUSHER
Crush, screen & recirculate—on one track
The Finlay® I-140RS tracked impact crusher is built for demanding secondary and tertiary work in quarrying, mining, demolition, and recycling. At its core is the Terex® CR032 impact chamber with direct drive and advanced electronic control, delivering high reduction ratios and consistent cubical shape.
A quick-detach onboard recirculating system with a 4.8 × 1.52 m single-deck screen enables 1-pass sizing; the recirculating conveyor rotates for closed-loop or stockpile mode, and the entire RS section can be removed when not required. Improve flow with a VGF integral pre-screen.
WARRANTY, SERVICING
& FINANCING AVAILABLE
EXCLUSIVELY SOLD
IN BC BY PROTRACK
-
NET ENGINE POWER
-
INLET OPENING
-
OPERATING WEIGHT
-
TRANSPORT DIMENSIONS
-
WORKING DIMENSIONS
Tier 3 - Cat 540hp | Tier 4F / Stage IV - Scania 500hp / Tier 3 - Cat 403kW | Tier 4F / Stage IV - Scania 364kW
Ø50” x 48” / Ø1270mm x 1220mm
159,394lbs / 72,300kg
Height 12' 5'' | Width 11' 5'' | Length 71' 2'' / Height 3.8m | Width 3.47m | Length 21.7m
Height 19' 2'' | Width 26' 9'' | Length 70' 7'' / Height 5.86m | Width 8.17m | Length 21.5m
%20(1).png)
CRUSHER APPLICATIONS
STONE &
HARD ROCK
Granite, basalt & ore
.png)
.png)
CONCRETE
& ASPHALT
C&D / recycle waste
.png)
REBAR
& RUBBLE
Demolition debris
.png)
SAND &
AGGREGATES
Spec-grade sizing
.png)
MIXED SITE MATERIAL
On-site cleanup
.png)
LOWER YOUR OPERATING COSTS
Our Finlay equipment isn't just powerful—it's profitable. Here's how it reduces your bottom line:
WHAT SETS THE I-140RS APART
Crush + screen in one—compact, versatile, production-ready.
_edited.png){kind=small}
CR032 CHAMBER
Direct drive for high reduction & consistent shape.
QUICK DETACH SCREEN
16'×5' screen + recirc conveyor for closed-loop control or stockpiling.
HD VGF + PRESCREEN
Removes fines and improves choke feed and throughput.
_edited.png)
T-LINK TELEMATICS
(7-year data included) + options like pre-screen, by-pass conveyor, overband magnet.
.png)
QUARRY FOREMAN, BC
Brent T.
“It chews through our hardest rock—quietly and efficiently. And setup is the fastest I’ve seen.”
A CLOSER COMPARISON
.png)
