FINLAY J-1480 JAW CRUSHER
J-1480: Quarry-tough performance, fast setup

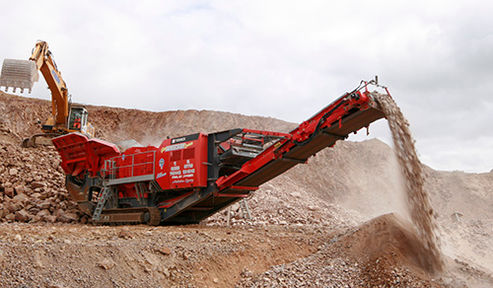

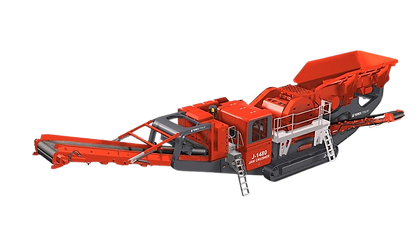

The Finlay® J-1480 tracked jaw crusher is built for high-duty quarrying, mining, demolition, and recycling. It pairs a Terex® Jaques JW55 1415 × 820 mm (55" × 32") single-toggle jaw with a hydrostatic drive (reverse for safe unblocking) and hydraulic CSS for fast adjustments; a direct-drive option is available.
A large 10 m³ hopper with vibrating pan and independent pre-screen keeps the chamber choke-fed for steady output. Compact for its class yet quick to set up, the J-1480 delivers up to ~750 tph (application-dependent) with proven uptime and easy operation.
WARRANTY, SERVICING
& FINANCING AVAILABLE
EXCLUSIVELY SOLD
IN BC BY PROTRACK
-
NET ENGINE POWER
-
INLET OPENING
-
OPERATING WEIGHT
-
TRANSPORT DIMENSIONS
-
WORKING DIMENSIONS
Tier 3 - CAT 440hp | Tier 4 Final / Stage V - Scania 450hp / Tier 3 - CAT 328kW | Tier 4 Final / Stage V - Scania 331kW
55” x 32" / 1415mm x 820mm
175,157lbs / 79,450kg
Height 12' 8'' | Width 11' 1'' | Length 59' 4'' / Height 3.8m | Width 3.38m | Length 18m
Height 15' 3'' | Width 22' 0'' | Length 67' 11'' / Height 4.6m | Width 6.7m | Length 20.7m
%20(1).jpg)
CRUSHER APPLICATIONS
STONE &
HARD ROCK
Granite, basalt & ore
.png)
.png)
CONCRETE
& ASPHALT
C&D / recycle waste
.png)
REBAR
& RUBBLE
Demolition debris
.png)
SAND &
AGGREGATES
Spec-grade sizing
.png)
MIXED SITE MATERIAL
On-site cleanup
.png)
LOWER YOUR OPERATING COSTS
Our Finlay equipment isn't just powerful—it's profitable. Here's how it reduces your bottom line:
WHAT SETS THE
J-1480 APART
Compact, powerful & engineered for max versatility applications.
_edited.png){kind=small}
JW55 55"×32" JAW
Hydrostatic jaw with reverse & hydraulic CSS; optional direct drive fuel efficiency.
VIBRATING PAN & PRE-SCREEN
10m³ hopper + vibrating pan & prescreen for consistent choke-feed.
HIGH THROUGHPUT
Get up to ~750 tph depending on material and setup.
_edited.png)
CONFIGURE YOUR BUILD
Overband magnet & by-pass conveyor, 1.4m main belt ≈4.5m discharge, T-Link telematics.
.png)
QUARRY FOREMAN, BC
Brent T.
“It chews through our hardest rock—quietly and efficiently. And setup is the fastest I’ve seen.”
A CLOSER COMPARISON
.png)
