FINLAY J-960 JAW CRUSHER
J-960: Compact, aggressive—built for tight sites

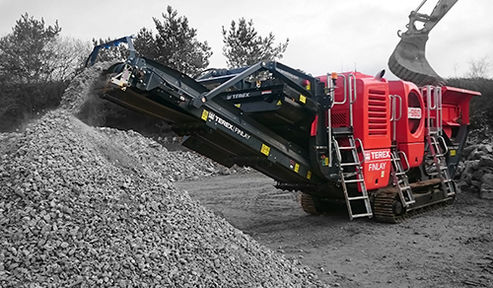

The Finlay® J-960 tracked jaw crusher is designed for quarrying, mining, demolition & recycling in space-constrained jobs. It pairs a direct-drive 900x600mm single-toggle jaw w/ hydraulic wedge CSS adjustment & reverse for safe unblocking—delivering high capacity & large reduction ratios in a compact footprint.
A 3.6 m³ hopper with heavy-duty VGF (50 mm grizzly; 500–915 rpm) keeps the chamber choke-fed, while a redesigned main conveyor provides 440mm under-jaw clearance to improve flow in recycling. Transport-friendly and quick to set up, the J-960 is simple to operate and comes T-Link telematics.
WARRANTY, SERVICING
& FINANCING AVAILABLE
EXCLUSIVELY SOLD
IN BC BY PROTRACK
-
NET ENGINE POWER
-
INLET OPENING
-
OPERATING WEIGHT
-
TRANSPORT DIMENSIONS
-
WORKING DIMENSIONS
Tier 3 John Deere 169hp | Tier 4 Final / Stage V - CAT 173hp / Tier 3 John Deere 126kW | Tier 4 Final / Stage V - CAT 129kW
35" x 24" / 900mm x 600mm
61,730lbs / 28,000kg
Height 10' 6'' | Width 7'10'' | Length 40'8'' / Height 3.2m | Width 2.4m | Length 12.4m
Height 10' 6'' | Width 12'6'' | Length 40'8'' / Height 3.2m | Width 3.8m | Length 12.4m
%20(1).jpg)
CRUSHER APPLICATIONS
STONE &
HARD ROCK
Granite, basalt & ore
.png)
.png)
CONCRETE
& ASPHALT
C&D / recycle waste
.png)
REBAR
& RUBBLE
Demolition debris
.png)
SAND &
AGGREGATES
Spec-grade sizing
.png)
MIXED SITE MATERIAL
On-site cleanup
.png)
LOWER YOUR OPERATING COSTS
Our Finlay equipment isn't just powerful—it's profitable. Here's how it reduces your bottom line:
WHAT SETS THE
J-960 APART
Compact, powerful & engineered for max versatility.
_edited.png){kind=small}
DIRECT DRIVE
900×60mm jaw with reverse and fast hydraulic CSS adjustment.
3.6M HOPPER + HD VGF
50 mm grizzly with a variable 500 – 915 rpm for a steady feed.
IMPROVED FLOW
440mm under-jaw clearance on main conveyor for recycling.
_edited.png)
T-LINK TELEMATICS
(7-year data included) + options like pre-screen, by-pass conveyor, overband magnet.
.png)
QUARRY FOREMAN, BC
Brent T.
“It chews through our hardest rock—quietly and efficiently. And setup is the fastest I’ve seen.”
A CLOSER COMPARISON
.png)
