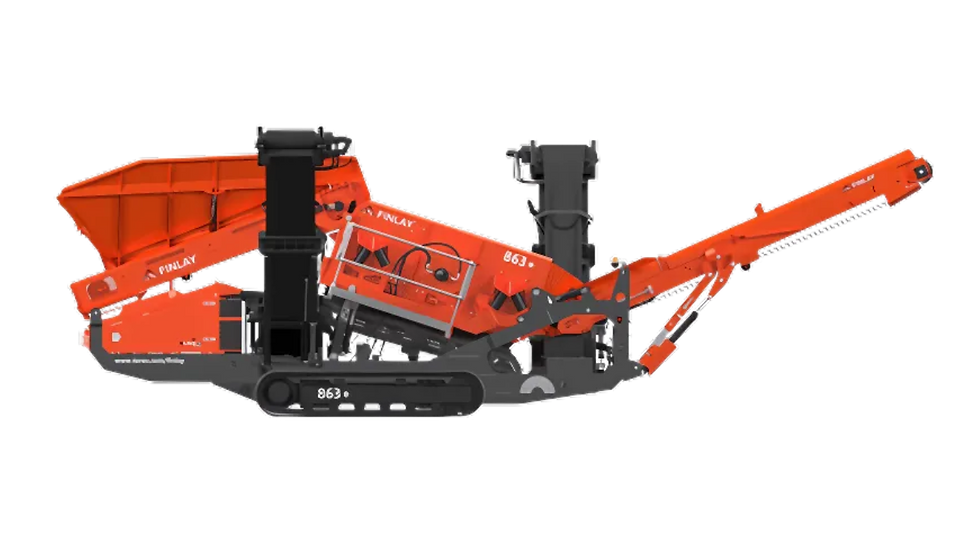

FINLAY 863 HEAVY DUTY SCREENER
863: Compact 9'×4' scalper—built for tight sites.
The Finlay® 863 is a compact, aggressive forward-facing scalper for primary/secondary screening across aggregates, sand & gravel, topsoil, C&D and recycling—especially where space is at a premium. Its two “true” 2.76 × 1.22m (9' × 4') decks run at a 14–18° hydraulic angle, and the discharge end jack-ups.
A 5m³ hopper with hydraulic folding extensions feeds the screen via variable-speed belt; wide conveyors include a 1m oversize, 650mm mid, and 650mm fines with discharge heights to 3.85m. Transport-friendly at 9.6 × 2.55 × 3.1m and ~18.3t, the 863 sets up quickly.
WARRANTY, SERVICING
& FINANCING AVAILABLE
EXCLUSIVELY SOLD
IN BC BY PROTRACK
-
NET ENGINE POWER
-
INLET OPENING
-
OPERATING WEIGHT
-
TRANSPORT DIMENSIONS
-
WORKING DIMENSIONS
Tier 3 - Deutz 66.2hp | Tier 4i/ Stage IIIB - Cat 74hp / Tier 3 - Deutz 49.4kW | Tier 4i/ Stage IIIB - Cat 66.2kW
Screen: 9'' x 4'' / 2.76m x 1.22m
40,350lbs / 18,300kg
Height 10' 2'' | Width 8' 4'' | Length 31' 6'' / Height 3.1m | Width 2.55m | Length 9.6m
Height 12' 8'' | Width 46' 93' | Length 39' 8'' / Height 3.85m | Width 14.1m | Length 12.1m
%20(1).jpg)
CRUSHER APPLICATIONS
STONE &
HARD ROCK
Granite, basalt & ore
.png)
.png)
CONCRETE
& ASPHALT
C&D / recycle waste
.png)
REBAR
& RUBBLE
Demolition debris
.png)
SAND &
AGGREGATES
Spec-grade sizing
.png)
MIXED SITE MATERIAL
On-site cleanup
.png)
LOWER YOUR OPERATING COSTS
Our Finlay equipment isn't just powerful—it's profitable. Here's how it reduces your bottom line:
WHAT SETS THE 863 APART
High capacity, tough build & fast setup.
_edited.png){kind=small}
TWIN DECKS
Twin 9'×4' decks; 14–18° hydraulic angle; +500mm discharge-end jack-up.
BIG PILE CONVEYORS
1m oversize (3.5m discharge), 650mm mid, 650mm fines.
COMPACT TO MOVE
9.6 × 2.55 × 3.1 m transport; ~18,300 kg with beltfeeder included.
_edited.png)
T-LINK TELEMATICS
(7-year data included) + options like pre-screen, by-pass conveyor, overband magnet.
.png)
QUARRY FOREMAN, BC
Brent T.
“It chews through our hardest rock—quietly and efficiently. And setup is the fastest I’ve seen.”
A CLOSER COMPARISON
.png)
WHY PROTRACK?
01
EXCLUSIVE CANADIAN DEALER
Your trusted source for Terex Finlay, Edge Innovative & used equipment.
03
LOCAL EXPERTISE
Bringing years of equipment knowledge & responsive service.
02
FULL ACCESS FINLAY LINEUP
Full line access to powerful Finlay Crushers, Screeners & more.
04
FULL SERVICE SUPPORT
Include training, delivery, financing, serivcing, parts & more.
.png)
