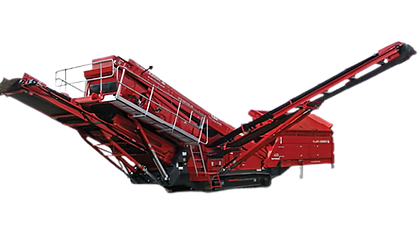

FINLAY 683 INCLINED SCREEN
683: Compact double-deck—built for versatility.
The Finlay® 683 is a compact, high-energy two-deck screener for quarrying, sand & gravel, aggregates, recycling, topsoil, coal and more. Its screenbox combines a 12' × 5' top deck with a 10' × 5' (3.00 × 1.53m) bottom deck for 10.1 m² (110 ft²) total area, with hydraulic angle 18–37° and full catwalk access.
A rugged 8m³ hopper and 1.05m beltfeeder drive consistent flow to three stockpilers: 1.2m fines (≈3.86m discharge, 106m³ pile) plus twin 650mm side conveyors (≈4.72m discharge, 194 m³ piles). Transport-friendly at 15 × 3.0 × 3.25m and 24,250kg, the 683 ships with T-Link telematics.
WARRANTY, SERVICING
& FINANCING AVAILABLE
EXCLUSIVELY SOLD
IN BC BY PROTRACK
-
NET ENGINE POWER
-
INLET OPENING
-
OPERATING WEIGHT
-
TRANSPORT DIMENSIONS
-
WORKING DIMENSIONS
Tier 3 - Cat 113hp | Tier 4F / Stage IV - 110hp / Tier 3 - Cat 83kW | Tier3 4F / Stage IV - 82kW
Screen: 12’ x 5’ / 3.66m x 1.52m
53,462lbs / 24,250kg
Height 10' 8'' | Width 9' 10'' | Length 49' 3'' / Height 3.25m | Width 3m | Length 15m
Height 17' 5'' | Width 56' 7'' | Length 54' 0'' / Height 5.3m | Width 17.25m | Length 16.5m
%20(1).jpg)
CRUSHER APPLICATIONS
STONE &
HARD ROCK
Granite, basalt & ore
.png)
.png)
CONCRETE
& ASPHALT
C&D / recycle waste
.png)
REBAR
& RUBBLE
Demolition debris
.png)
SAND &
AGGREGATES
Spec-grade sizing
.png)
MIXED SITE MATERIAL
On-site cleanup
.png)
LOWER YOUR OPERATING COSTS
Our Finlay equipment isn't just powerful—it's profitable. Here's how it reduces your bottom line:
WHAT SETS THE 683 APART
Proven 2-deck performance, fast setup, big stockpiles.
_edited.png){kind=small}
ASYMMETRIC BOX
Asymmetric 12'×5' / 10'×5' box; 10.1m² total area; 18–37° hydraulic angle.
3 ONBOARD STOCKPILERS
1.2m fines + dual 650mm side conveyors (hydraulic fold).
COMPACT TO MOVE
15 × 3.0 × 3.25 metre transport; 24,250 kg operating weight.
_edited.png)
T-LINK TELEMATICS
(7-year data included) + options like pre-screen, by-pass conveyor, overband magnet.
.png)
QUARRY FOREMAN, BC
Brent T.
“It chews through our hardest rock—quietly and efficiently. And setup is the fastest I’ve seen.”
