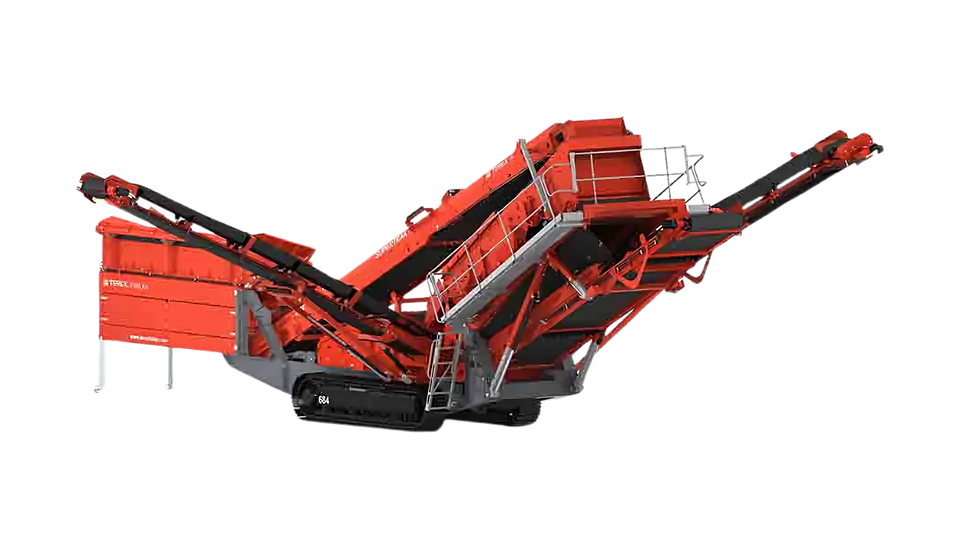

FINLAY 684 2-DECK INCLINED SCREEN
Compact double-deck—built for production.
The Finlay® 684 2-Deck inclined screen is a compact, easily transportable screener with rapid setup/tear-down. Its high-energy screenbox carries two 4.3×1.7m decks for efficient screening & high capacity w/ hydraulic angle 18–37° plus quick wedge (top) & hydraulic (bottom).
An 8m³ hopper feeds wide conveyors: 1.2 m fines (to 4.15 m discharge; ~106 m³ stockpile @25°) and twin 650mm side conveyors (to 4.76m; ~194m³ each). The 1.0m main conveyor is steel-skirted full length. T-Link telematics with a 7-year data plan comes standard.
WARRANTY, SERVICING
& FINANCING AVAILABLE
EXCLUSIVELY SOLD
IN BC BY PROTRACK
-
NET ENGINE POWER
-
INLET OPENING
-
OPERATING WEIGHT
-
TRANSPORT DIMENSIONS
-
WORKING DIMENSIONS
Tier 3 / Stage IIIA Tier 3 - Cat 102hp | Tier 4F / Stage IV - 110hp / Tier 3 - Cat 77W | Tier 4F / Stage IV - 82kW
Screen: 14’ x 5’ 7" / 4.3m x 1.7m
63,380lbs / 28,750kg
Height 11' 7'' | Width 9' 10'' | Length 57' 10'' / Height 3.53m | Width 3m | Length 17.61m
Height 20' | Width 56' 8'' | Length 60' 7'' / Height 6.11m | Width 17.25m | Length 18.46m
%20(1).jpg)
CRUSHER APPLICATIONS
STONE &
HARD ROCK
Granite, basalt & ore
.png)
.png)
CONCRETE
& ASPHALT
C&D / recycle waste
.png)
REBAR
& RUBBLE
Demolition debris
.png)
SAND &
AGGREGATES
Spec-grade sizing
.png)
MIXED SITE MATERIAL
On-site cleanup
.png)
LOWER YOUR OPERATING COSTS
Our Finlay equipment isn't just powerful—it's profitable. Here's how it reduces your bottom line:
WHAT SETS THE 684 2-DECK APART
High-capacity double deck, compact footprint.
_edited.png){kind=small}
TWIN DECKS
Twin 14' × 5'7" decks; 14.6 m² total area; 18–37° hydraulic screen angle.
FAST MEDIA SWAPS
Wedge top-deck and hydraulic bottom-deck tensioning.
LARGE STOCKPILES
From compact plant: 1.2 m fines and 650mm side belts with high discharge heights.
_edited.png)
T-LINK TELEMATICS
(7-year data included) + options like pre-screen, by-pass conveyor, overband magnet.
.png)
QUARRY FOREMAN, BC
Brent T.
“It chews through our hardest rock—quietly and efficiently. And setup is the fastest I’ve seen.”
A CLOSER COMPARISON
.png)
