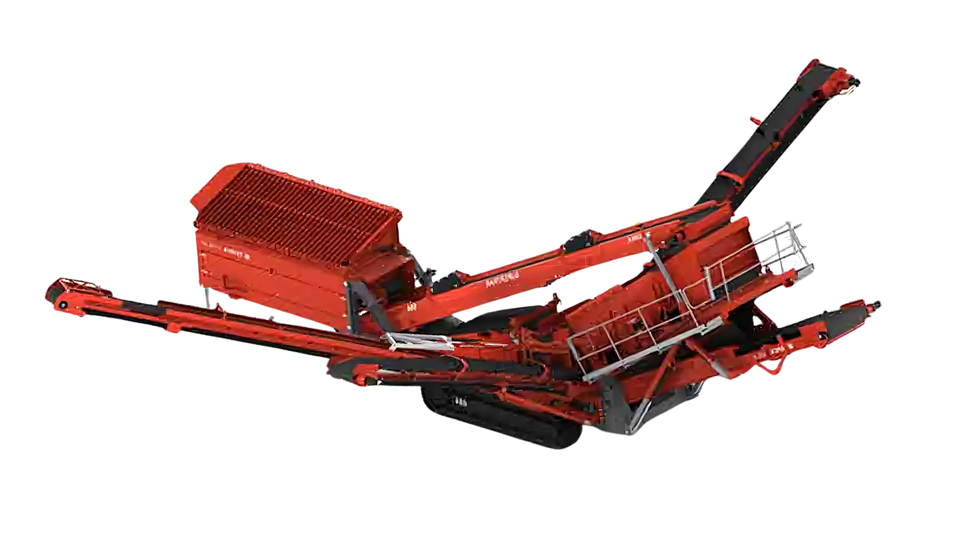

FINLAY 684 3-DECK INCLINED SCREEN
684 3-Deck: Compact triple-deck—built for production.
The Finlay® 684 3-Deck is a compact, easily transportable screener with rapid setup/tear-down. Its high-energy screenbox carries three 4.3×1.7m (14'×5'7") decks for ~21.9m² ≈236ft² total area, with hydraulic angle 18–37° and fast mesh changeouts via wedge top-deck and hydraulic bottom-deck tensioning.
Four discharge conveyors fold hydraulically; the fourth “oversize-plus” 500 mm conveyor adds variable tilt & side-slew for precise recirc or stockpiling. Hybrid drive is available, and T-Link telematics with a 7-year data plan is standard.
WARRANTY, SERVICING
& FINANCING AVAILABLE
EXCLUSIVELY SOLD
IN BC BY PROTRACK
-
NET ENGINE POWER
-
INLET OPENING
-
OPERATING WEIGHT
-
TRANSPORT DIMENSIONS
-
WORKING DIMENSIONS
Tier 3 / Stage IIIA Tier 3 - Cat 113hp | Tier 4F / Stage IV - 111hp / Tier 3 - CAT 83kW | Tier 4F / Stage IV - Cat 82kW
Screen: 14’ x 5’ 7” / 4.3m x 1.7m
73,800lbs / 33,500kg
Height 11' 7'' | Width 9' 10'' | Length 57' 10'' / Height 3.5m | Width 3m | Length 17.62m
Height 20' | Width 57' 8'' | Length 60' 7'' / Height 6.1m | Width 17.57m | Length 18.47m
%20(1).jpg)
CRUSHER APPLICATIONS
STONE &
HARD ROCK
Granite, basalt & ore
.png)
.png)
CONCRETE
& ASPHALT
C&D / recycle waste
.png)
REBAR
& RUBBLE
Demolition debris
.png)
SAND &
AGGREGATES
Spec-grade sizing
.png)
MIXED SITE MATERIAL
On-site cleanup
.png)
LOWER YOUR OPERATING COSTS
Our Finlay equipment isn't just powerful—it's profitable. Here's how it reduces your bottom line:
WHAT SETS THE 684 3-DECK APART
684 3-Deck: Compact triple-deck—built for production.
_edited.png){kind=small}
TRIPLE DECK
Triple 14' × 5'7" decks; ~21.9m² total area; 18–37° hydraulic screen angle.
FAST TENSIONING
Wedge (top) + hydraulic (bottom) speeds mesh changeouts.
OVERSIZE+ CONVEYOR
500mm belt with variable tilt & side-slew for recirc or stockpile.
_edited.png)
T-LINK TELEMATICS
(7-year data included) + options like pre-screen, by-pass conveyor, overband magnet.
.png)
QUARRY FOREMAN, BC
Brent T.
“It chews through our hardest rock—quietly and efficiently. And setup is the fastest I’ve seen.”
