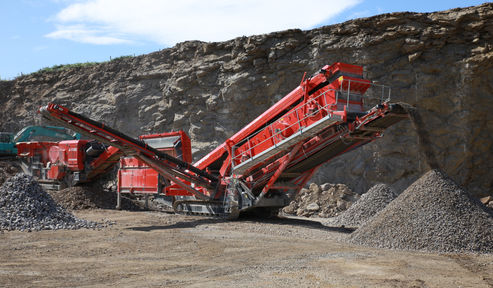

FINLAY 693+ INCLINED SCREEN
Double-deck, high-energy—built for production.
The Finlay® 693+ inclined screen is engineered for high-throughput screening in quarrying, mining, sand & gravel, coal, woodchip, and topsoil. Its high-energy screenbox carries two full-size 6.1 × 1.53 m (20' × 5') decks delivering 18.7 m² (200 ft²) total area, with hydraulic angle 18–32° to tune for changing feeds.
An 8m³ hopper with variable-speed 1.2m (48") beltfeeder keeps material moving to four stockpilers: a 1.2m fines conveyor (~5.5m discharge), 800 mm oversize and 800 mm middle grade (~5.1m), plus a 500mm “oversize-plus” conveyor with tilt & slew for closed-circuit recirculation or stockpiling
WARRANTY, SERVICING
& FINANCING AVAILABLE
EXCLUSIVELY SOLD
IN BC BY PROTRACK
-
NET ENGINE POWER
-
INLET OPENING
-
OPERATING WEIGHT
-
TRANSPORT DIMENSIONS
-
WORKING DIMENSIONS
Tier 3 Cat 121hp - Tier 4F / Stage IV - 110hp / Tier 3 - CAT 90kW | Tier 4F/ Stage IV - Cat 82kW
Screen: 20’ x 5’ / 6.1m x 1.53m
76,831lbs / 34,850kg
Height 11' 1'' | Width 9' 10'' | Length 64' 7'' / Height 3.65m | Width 3m | Length 19.7m
Height 19' 0'' | Width 59' 6'' | Length 68' 11'' / Height 5.8m | Width 18.10m | Length 21.01m
%20(1).jpg)
CRUSHER APPLICATIONS
STONE &
HARD ROCK
Granite, basalt & ore
.png)
.png)
CONCRETE
& ASPHALT
C&D / recycle waste
.png)
REBAR
& RUBBLE
Demolition debris
.png)
SAND &
AGGREGATES
Spec-grade sizing
.png)
MIXED SITE MATERIAL
On-site cleanup
.png)
LOWER YOUR OPERATING COSTS
Our Finlay equipment isn't just powerful—it's profitable. Here's how it reduces your bottom line:
WHAT SETS THE 693+ APART
High-capacity double deck, flexible stockpiling.
_edited.png){kind=small}
HIGH ENERGY BOX
2×20'×5' box; 18–32° hydraulic angle; 18.7m² total screening area.
FOUR STOCKPILERS
including a tilt & slew “oversize-plus” conveyor for recirc/stockpile flexibility.
FOLDING CATWALKS
Hydraulic folding catwalks & conveyors for rapid setup and easy access.
_edited.png)
T-LINK TELEMATICS
(7-year data included) + options like pre-screen, by-pass conveyor, overband magnet.
.png)
QUARRY FOREMAN, BC
Brent T.
“It chews through our hardest rock—quietly and efficiently. And setup is the fastest I’ve seen.”
