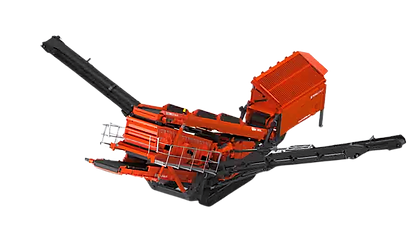

FINLAY 694+ INCLINED SCREEN
Triple-deck, high-energy—built for production.
The Finlay® 694+ inclined screen is engineered for high-production screening in quarrying, mining, sand & gravel, coal, woodchip and topsoil. Its high-energy screenbox carries three full-size 6.1 × 1.53 m (20' × 5') decks for a total area of 28 m² (301 ft²), with hydraulic angle 18–32° to tune for changing feeds.
A variable-speed 1.2 m (48") beltfeeder and 8 m³ hopper keep material moving, while four stockpilers include a 1.2 m fines conveyor and a hydraulically folded “oversize-plus” 500 mm conveyor with variable tilt & side-slew for closed-circuit recirculation or stockpiling.
WARRANTY, SERVICING
& FINANCING AVAILABLE
EXCLUSIVELY SOLD
IN BC BY PROTRACK
-
NET ENGINE POWER
-
INLET OPENING
-
OPERATING WEIGHT
-
TRANSPORT DIMENSIONS
-
WORKING DIMENSIONS
Tier 3 - Cat 130hp | Tier 4F / Stage IV 131hp / Tier 3 - Cat 97kW | Tier 4F / Stage IV 98kW
Screen: 20’ x 5’ / 6.1m x 1.53m
86,531lbs / 39,250kg
Height 11' 11'' | Width 9' 10'' | Length 64' 7'' / Height 3.65m | Width 3m | Length 19.7m
Height 19' 0'' | Width 60' 7'' | Length 68' 11'' / Height 5.8m | Width 18.45m | Length 21.01m
%20(1).jpg)
CRUSHER APPLICATIONS
STONE &
HARD ROCK
Granite, basalt & ore
.png)
.png)
CONCRETE
& ASPHALT
C&D / recycle waste
.png)
REBAR
& RUBBLE
Demolition debris
.png)
SAND &
AGGREGATES
Spec-grade sizing
.png)
MIXED SITE MATERIAL
On-site cleanup
.png)
LOWER YOUR OPERATING COSTS
Our Finlay equipment isn't just powerful—it's profitable. Here's how it reduces your bottom line:
WHAT SETS THE 694+ APART
High-capacity triple deck,, flexible stockpiling.
_edited.png){kind=small}
TRIPLE 20'×5' DECKS
Large Triple decks of 28 m² total area; 18–32° hydraulic angle.
4TH OVERSIZE PLUS
4th oversize-plus conveyor with tilt & slew (≈18–30°) for recirc or stockpile.
WIDE STOCKPILERS
1.2m fines (5.5m discharge); 800mm oversize (5.1m); + 500mm oversize+.
_edited.png)
HYBRID + T-LINK
Hybrid ready + T-Link standard (7-yr data) for energy flexibility and real-time fleet visibility.
.png)
QUARRY FOREMAN, BC
Brent T.
“It chews through our hardest rock—quietly and efficiently. And setup is the fastest I’ve seen.”
