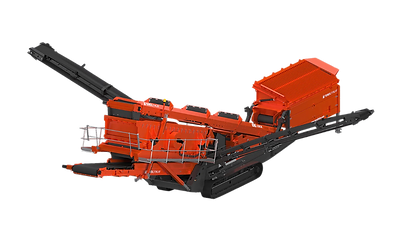

FINLAY 696 2-DECK
INCLINED SCREEN
Double-deck, high-energy—built for production.
The Finlay® 696 2-Deck inclined screen is engineered for high-production screening in quarrying, mining, sand & gravel, coal, woodchip and topsoil. Its high-energy screenbox carries two full-size 6.1 × 1.7m (20' × 5'7") decks delivering a total area of 20.74m² (223 ft²), with hydraulic angle 18–32° for on-site tuning.
An 8m³ hopper with variable-speed 1.2m (48") beltfeeder ensures consistent material flow, while hydraulically folding catwalks and conveyors give sub-30-min setup. Hybrid drive is available, and T-Link telematics with a 7-year data plan is standard.
WARRANTY, SERVICING
& FINANCING AVAILABLE
EXCLUSIVELY SOLD
IN BC BY PROTRACK
-
NET ENGINE POWER
-
INLET OPENING
-
OPERATING WEIGHT
-
TRANSPORT DIMENSIONS
-
WORKING DIMENSIONS
Tier 3 - Cat 130hp | Tier 4F / Stage V 131hp / Tier 3 - Cat 97kW | Tier 4F / Stage V 98kW
Screen: 20’ x 5’ 7” / 6.1m x 1.7m
74,550lbs / 33,800kg
Height 11' 11'' | Width 9' 10'' | Length 64' 7'' / Height 3.65m | Width 3m | Length 19.7m
Height 19' 0'' | Width 59' 6'' | Length 68' 11'' / Height 5.8m | Width 18.1m | Length 21.01m
%20(1).jpg)
CRUSHER APPLICATIONS
STONE &
HARD ROCK
Granite, basalt & ore
.png)
.png)
CONCRETE
& ASPHALT
C&D / recycle waste
.png)
REBAR
& RUBBLE
Demolition debris
.png)
SAND &
AGGREGATES
Spec-grade sizing
.png)
MIXED SITE MATERIAL
On-site cleanup
.png)
LOWER YOUR OPERATING COSTS
Our Finlay equipment isn't just powerful—it's profitable. Here's how it reduces your bottom line:
WHAT SETS THE 696 2-DECK APART
High-capacity double deck, flexible stockpiling.
_edited.png){kind=small}
LARGEST 2-DECK BOX
In the Finlay range, the twin deck sits at 20' × 5'7", 20.74 m² total area.
ANGLE ON DEMAND
18–32° hydraulic screen angle for changing materials.
4 WIDE STOCKPILERS
48" fines (to 5.5m)+ 800mm oversize & middle grade (to 5.1m, 228 m³ piles).
_edited.png)
T-LINK TELEMATICS
(7-year data included) + options like pre-screen, by-pass conveyor, overband magnet.
.png)
QUARRY FOREMAN, BC
Brent T.
“It chews through our hardest rock—quietly and efficiently. And setup is the fastest I’ve seen.”
